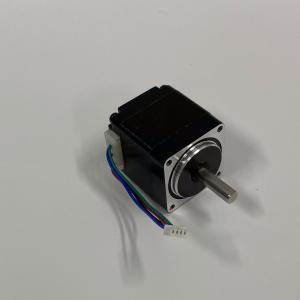

Medical Detector 28mm Hybrid Stepper Motor 0.67A 1.2kg.Cm 4-Leads Mini Stepper Motor

Product Categories
Changzhou Jinsanshi Mechatronics Co., Ltd
Contact Now

Medical Detector 28mm Hybrid Stepper Motor 0.67A 1.2kg.Cm 4-Leads Mini Stepper Motor

  • 1
  • 2

Brand Name : JSS-MOTOR

Model Number : 28HS51-0674

Certification : CE, RoHS, ISO9001

Place of Origin : China

MOQ : 1PCS

Price : negotable

Payment Terms : T/T, Western Union，credit card, paypal

Supply Ability : 50000pcs/month

Delivery Time : 1-15days

Packaging Details : cartons

name : mini stepper motor

size : 28*28*51mm

phase NO. : 2

step angle : 1.8°

phase current : 0.67A

phase voltage : 3.2VDC

phase resistance : 9.2Ω

phase inductance : 7.2mH

holding torque : 1.2kg.cm

motor length : 51mm

lead wires : 4

weight : 0.2kg

Contact Now

Medical Detector 28mm Hybrid Stepper Motor 0.67A 1.2kg.Cm 4-Leads Mini Stepper Motor

The motor is made of high-quality silicon steel material with high magnetic permeability and large resistance coefficient. The motor coil is made of pure copper enameled wire. The advanced winding process makes the copper wire evenly arranged, the motor temperature rise is lower, and the deformation problem will not occur for a long time.

Applications:

Stepper motor are widely applied in 3D printer, mini cnc router, engraving machine, textile machine, medical equipment, stage light equipment, robotic, CNC router, music fountain, and other industrial automatic equipment.

NEMA 11 2-phase 1.8° hybrid stepper motor

Specification:

Step Angel 1.8°
Temperature Rise 80℃
Ambient Temperature -20℃ Max ~ +50℃
Isulation Resistence 100MΩ min., 500VDC
Dielectric Strength 500VAC for 1 minute
Shaft Radial Play 0.02 Max (450g-load)
Shaft Axial Play 0.08 Max (450g-load)
Max. Radial Force 75N (20mm from the flange)
Max. Axial Force 15N

Electrical Specifications:

Model No Step Angle(°) Rated Voltage(V) Rated Current (A) Phase Resistance(Ω) Phase Inductance (mH) Holding Torque (g.cm) Rotor Inertia (g.cm²) Motor Length (mm) Leads No. Motor Weight(g)
28HS28-0354 1.8 4.2 0.35 12 5.8 450 6 28 4 105
28HS28-0604 1.8 2.52 0.6 4.2 2.2 450 6 28 4 105
28HS32-0674 1.8 3.88 0.67 5.8 3.2 600 9 32 4 110
28HS45-0674 1.8 4.56 0.67 6.8 4.9 950 12 45 4 140
28HS51-0674 1.8 3.2 0.67 9.2 7.2 1200 18 51 4 200

Dimensions:

Medical Detector 28mm Hybrid Stepper Motor 0.67A 1.2kg.Cm 4-Leads Mini Stepper Motor

Company information:

Medical Detector 28mm Hybrid Stepper Motor 0.67A 1.2kg.Cm 4-Leads Mini Stepper Motor

Packing:

Medical Detector 28mm Hybrid Stepper Motor 0.67A 1.2kg.Cm 4-Leads Mini Stepper Motor
FAQ
1.Q:Can I get some samples?
A:We are honored to offer you samples for quality check.
2.Q:Do you have the products in stock?
A:Our products are manufactured according to your order except the normal products.
3.Q:What's the delivery time?
A:It usually takes about 7 working days,but the exact delivery time might be different for different order or at different time.
4.Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production.
Every product will be fully assembled and carefully tested before packed.
5. Q:What's your warranty terms?
A: We offer different warranty terms for different products. Please contact with us for details.
